Our Pelletpresses

Explore our range and find the machine that suits your needs

PP150 Kompakt

The PP150 Kompakt is a fully Swedish-made pellet press with a capacity of 125–175 kg of pellets per hour.


It processes wood raw material into 8 mm diameter pellets. This compact model is built with the entire machine unit integrated into a single frame construction.
The plant features a die and two feed rollers mounted on a driving fork. The pellet press is designed in a straightforward way to make servicing and handling as easy as possible.


The unit can also be delivered fully installed in a container – a mobile solution that is ready to start operating immediately upon delivery.

  • Pelletizing Capacity:
    Approx. 125–175 kg/hour

    Die:
    Cylindrical die
    – Inner diameter: 220 mm
    – Width: 33 mm

    Press Rollers:
    2 rollers
    – Diameter: 200 mm

    Electric Motor:
    15 kW

    Control System:
    PLC control with strategically placed sensors for fully automated operation

    Grinding Unit:
    Hammer mill, 7.5 kW

    Frame Construction:
    All-in-one frame
    – Dimensions: 1.5 x 2.5 meters

PP300 Kompakt

PP300 Kompakt – Swedish-Made Pellet Press

The PP300 Kompakt is a fully Swedish-made pellet press with a capacity of up to 250–350 kg of pellets per hour.
It processes wood-based raw materials into 8 mm diameter pellets.

This compact model features an integrated frame design that houses the entire machine unit in one structure.
The plant includes a cylindrical die and two feed rollers mounted on a driving fork.

The machine is designed with simplicity and serviceability in mind, making operation, maintenance, and handling efficient and straightforward.

The unit can also be delivered fully installed in a container – a mobile solution that is ready to start operating immediately upon delivery.

  • Pelletizing Capacity:
    Approx. 250–350 kg/hour

    Die:
    Cylindrical die
    – Inner diameter: 410 mm
    – Width: 33 mm

    Press Rollers:
    2 rollers
    – Diameter: 200 mm

    Electric Motor:
    30 kW

    Control System:
    PLC control with strategically placed sensors for fully automated operation

    Grinding Unit:
    Hammer mill, 7.5 kW

    Frame Construction:
    All-in-one frame
    – Dimensions: 2 x 3 meters

PP450 Kompakt

The PP450 Kompakt is a fully Swedish-made pellet press with a capacity of up to 500 kg of pellets per hour.
It processes wood-based raw materials into 6 or 8 mm diameter pellets.

This compact model features an integrated all-in-one frame design, housing the complete machine unit in a single structure.
The system includes a cylindrical die and two feed rollers mounted on a robust drive fork.

Built for easy serviceability and efficient operation, the PP450 Kompakt is ideal for high-capacity, continuous pellet production.

  • Pelletizing Capacity:
    Up to approx. 500 kg/hour

    Die:
    Cylindrical die
    – Inner diameter: 410 mm
    – Width: 33 mm

    Press Rollers:
    2 rollers
    – Diameter: 200 mm

    Electric Motor:
    37 kW

    Control System:
    PLC control with strategically placed sensors for fully automated operation

    Grinding Unit:
    Hammer mill, 7.5 kW (adjustable depending on material)

    Frame Construction:
    Built on frames

PP300 Twin

The PP300 Twin is a fully Swedish-made pellet press with a capacity of up to 500–700 kg of pellets per hour.
It processes wood-based raw materials into pellets ranging from 5 to 12 mm in diameter.

This compact model features an integrated frame design that houses the complete twin press unit.
The system can be run as a single or dual unit, depending on the desired output.
Built on the patent-pending solutions of the PP300, it offers a flexible and cost-effective solution for medium to high-volume pellet production.

Designed with simplicity and serviceability in mind, the PP300 Twin is easy to operate, maintain, and scale as needed.

  • Pelletizing Capacity:
    Up to approx. 700 kg/hour

    Die:
    Cylindrical die
    – Inner diameter: 410 mm
    – Width: 33 mm

    Press Rollers:
    2 rollers
    – Diameter: 200 mm

    Electric Motor:
    37 kW

    Control System:
    PLC control with strategically placed sensors for fully automated operation

    Grinding Unit:
    Hammer mill, 7.5 kW (adjustable depending on material)

    Frame Construction:
    Built on frames

PP450 Twin

The PP450 Twin is a fully Swedish-made compact pellet system with a capacity of 800–1,000 kg of pellets per hour, depending on the raw material.
It processes wood-based materials into pellets ranging from 5 to 12 mm in diameter.

This compact model is built with an all-in-one frame construction, housing the full twin press setup.
The system can be run as a single or dual unit, depending on your production needs.

The press is designed for easy maintenance and operation, making it ideal for high-volume pellet production with minimal downtime.

  • Pelletizing Capacity:
    Up to approx. 800–1,000 kg/hour

    Die:
    2 cylindrical dies

    Press Rollers:
    4 rollers

    Electric Motor:
    2 x 37 kW

    Control System:
    PLC control with strategically placed sensors for fully automated operation

    Grinding Unit:
    Hammer mill, 11 kW (adjustable depending on material)

    Frame Construction:
    Built on frames

Peripheral Equipment & Accessories

Large Sack filler

The Large Sack Filler is an automatic filling system designed for efficient and continuous sack filling of pellets.
It is developed for self-operating filling and supports bags of up to 1,500 liters.

Pellets are transported via a smooth conveyor belt and guided into each bag through a controllable chute.
Bags are filled one by one, and full bags can be replaced with empty ones without stopping operation.
Each bag station is equipped with a sensor that detects when the bag is full. When triggered, the chute automatically closes and opens to the next bag.

The standard unit is designed for four bags, but configurations from two bags and up are available based on space and operational needs.

The system is delivered fully equipped with sensors, emergency stop, and a user-friendly control panel.

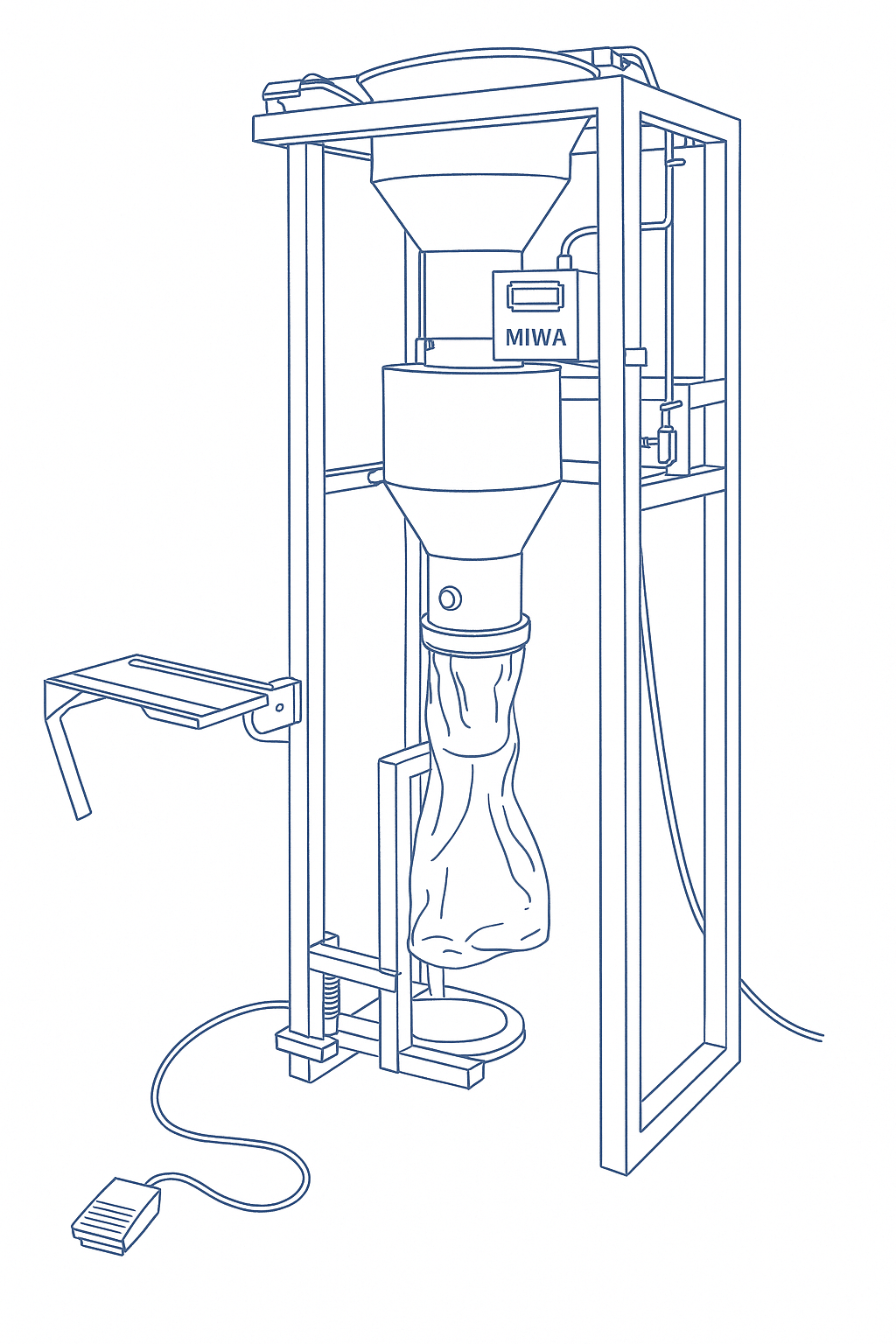

Small sack filler

The Small sackFiller is a PLC-controlled system designed for manual small bag filling of pellets.
It offers high capacity by weighing the next batch while the previous one is being filled.

The filling scale is fed by a frequency-controlled screw conveyor. At the end of the weighing cycle, the screw slows down to fine-dosing mode to ensure maximum accuracy.

The weighing hopper holds approximately 30 kg and is suspended on three load cells.
Once the pre-set weight is reached, a pneumatically operated gate opens, and the material drops into an intermediate hopper.

Bag filling begins as soon as the operator lowers the filling lever. At the same time, the system starts weighing the next batch.
Only when the lower hopper is emptied will the new batch be released, enabling a continuous, high-capacity workflow.

Automatic Floor

Custom-built cross screw, e.g. 3000 mm, with a 1.5 kW drive unit

  1. Two longitudinal, hydraulically driven push bars feeding material to the screw

  2. Hydraulic power unit with switching valve to control the push bars

  3. Screw diameter: 280 mm – optimized for smooth feeding of planer shavings from the storage pocket

  4. The front wall must be angled inward toward the storage to prevent material bridging

  5. Fuel feed rate is regulated by scraper arms



Silo & Sieve

Efficient storage solution for high-quality pellet delivery to any packaging equipment.


Includes a screening unit for separating sawdust from the finished pellets, and a reliable discharge system for smooth outflow from the silo.
